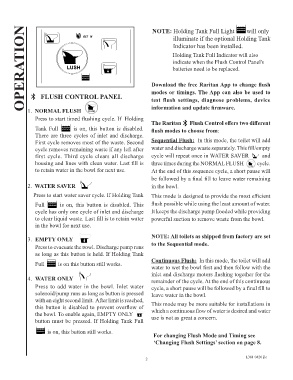

Page 2 - Raritan Smart Toilet Control Bluetooth Owners Manual L381v0420

OPERATION
NOTE: Holding Tank Full Light will only
illuminate if the optional Holding Tank
RARITAN
Indicator has been installed.
Holding Tank Full Indicator will also
indicate when the Flush Control Panel's
FLUSH batteries need to be replaced.

Download the free Raritan App to change flush
modes or timings. The App can also be used to
FLUSH CONTROL PANEL test flush settings, diagnose problems, device

1. NORMAL FLUSH information and update firmware.
Press to start timed flushing cycle. If Holding
The Raritan Flush Control offers two different
Tank Full is on, this button is disabled. flush modes to choose from:
There are three cycles of inlet and discharge.
First cycle removes most of the waste. Second Sequential Flush: In this mode, the toilet will add
cycle removes remaining waste if any left after water and discharge waste separately. This fill/empty
first cycle. Third cycle clears all discharge cycle will repeat once in WATER SAVER and RARITAN
housing and lines with clean water. Last fill is three times during the NORMAL FLUSH cycle.
to retain water in the bowl for next use. At the end of this sequence cycle, a short pause will
FLUSH
be followed by a final fill to leave water remaining
2. WATER SAVER RARITAN in the bowl.

Press to start water saver cycle. If Holding Tank This mode is designed to provide the most efficient
Full is on, this button is disabled. This flush possible while using the least amount of water.
cycle has only one cycle of inlet and discharge It keeps the discharge pump flooded while providing
FLUSH
to clear liquid waste. Last fill is to retain water powerful suction to remove waste from the bowl.
in the bowl for next use.

3. EMPTY ONLY NOTE: All toilets as shipped from factory are set
Press to evacuate the bowl. Discharge pump runs to the Sequential mode.
as long as this button is held. If Holding Tank
Continuous Flush: In this mode, the toilet will add
Full is on this button still works.
RARITAN water to wet the bowl first and then follow with the
inlet and discharge motors flushing together for the
4. WATER ONLY remainder of the cycle. At the end of this continuous
Press to add water in the bowl. Inlet water cycle, a short pause will be followed by a final fill to
solenoid/pump runs as long as button is pressed leave water in the bowl.
with an eight second limit. After limit is reached,
FLUSH
this button is disabled to prevent overflow of This mode may be more suitable for installations in
which a continuous flow of water is desired and water
the bowl. To enable again, EMPTY ONLY
button must be pressed. If Holding Tank Full use is not as great a concern.
is on, this button still works.
For changing Flush Mode and Timing see
‘Changing Flush Settings’ section on page 8.

L381 0420 jlc
2
