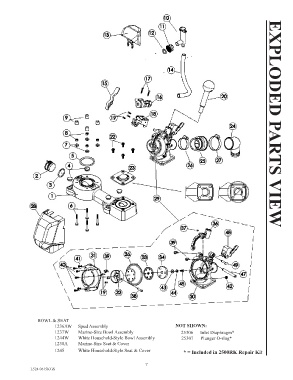

Page 2 - Raritan Fresh Head Exploded Parts View L524Ev

26 25216 Joker Valve Hose Clamp (Small) EXPLODED PARTS VIEW
27 25217 Joker Valve Hose Clamp (Large)
28 25214 Pump Cover
29 25200 Pump Assembly
30 25201 Pump Base
31 25202 Pump Top
32 25203 Diaphragm Piston
33 25204 Diaphragm Piston Cap
34 25206 Discharge Shut Off Seal*
35 227015 Diaphragm*
36 25207 Piston Lever SS
37 F352 Socket Set Screw
38 25208 Clevis Pin
39 1210B Cotter Pin, Rue Ring (3)
40 F400 Screw: #8-32 X 5/8" S/S (6)
41 F401 Screw: #8-32 X 3/4" S/S
42 F402 Nut: #8-32 S/S (7) BOWL & SEAT
43 F404 Washer: 1/4" Flat S/S 1236AW Spud Assembly NOT SHOWN:
44 F405 Lock Washer: 1/4" Split S/S 1237W Marine-Size Bowl Assembly 25306 Inlet Diaphragm*
45 1124 Screw: 1/4-20 x 1/2" S/S 1244W White Household-Style Bowl Assembly 25307 Plunger O-ring*
47 25209 Piston Shaft 1238A Marine-Size Seat & Cover
48 25210 Shut Off Lever 1245 White Household-Style Seat & Cover
49 25211 Shut Off Lever Pin * = Included in 2500RK Repair Kit
