Page 11 - Raritan Hold-N-Treat Electroscan EST System L372v0717
P. 11

31-134(4)
                                            HETLW10s                 CH20B             PLCF1-2EP




                                            21P*P

                                                                      640107               21PDIP1

                                       1242 (4)

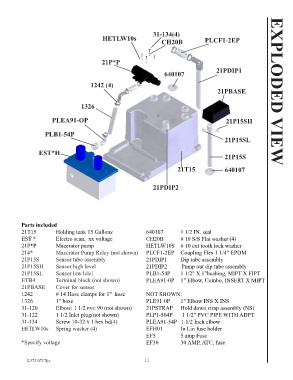

                                                                                            21PBASE               EXPLODED VIEW


                                   1326


                       PLEA91-OP                                                               21P15SH


                    PLB1-54P
                                                                                               21P15SL

                 EST*H
                                                                                               21P15S

                                                                           21T15               640107



                                                                 21PDIP2








          Parts included
          21T15         Holding tank 15 Gallons               640107        1 1/2 IN. seal
          EST *         Electro scan,  xx voltage             CH20B         # 10 S/S Flat washer (4)
          21P*P         Macerator pump                        HETLW10S  # 10 ext tooth lock washer
          214*          Macerator Pump Relay (not shown)      PLCF1-2EP  Coupling Flex 1 1/4" EPDM
          21P15S        Sensor tube assembly                  21PDIP1       Dip tube assembly
          21P15SH       Sensor high level                     21PDIP2          Pump out dip tube assembly
          21P15SL       Sensor low lelel                      PLB1-54P       1 1/2" X 1"bushing, MIPT X FIPT
          ETB4          Terminal block (not shown)            PLEA91-0P    1" Elbow, Combo, INSERT X MIPT
          21PBASE       Cover for sensor
          1242          # 14 Hose clamps for 1"  hose         NOT SHOWN:
          1326          1" hose                               PLE91-0P       1" Elbow INS X INS
          31-120        Elbow: 1 1/2 pvc 90 (not shown)       21PSTRAP      Hold down strap assembly (NS)
          31-122        1 1/2 Inlet plug(not shown)           PLP1-504P      1 1/2" PVC PIPE WITH ADPT.
          31-134        Screw 10-32 x 1 hex hd(4)             PLEA91-54P   1 1/2 Inch elbow
          EETLW10s      Spring washer (4)                     EFH01         In Lin fuse holder
                                                              EF5           5 amp Fuse
          *Specify voltage                                    EF30          30 AMP, ATC, fuse



             L372 0717jlc                                              11
