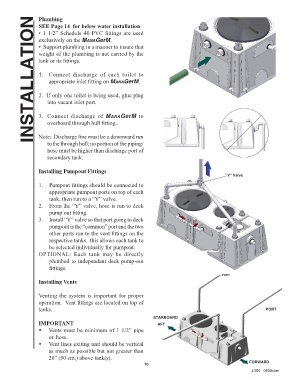

Plumbing
INSTALLATION
SEE Page 14 for below water installation
• 1 1/2” Schedule 40 PVC fittings are used
exclusively on the ManaGerM.
• Support plumbing in a manner to insure that
weight of the plumbing is not carried by the
tank or its fittings.

1. Connect discharge of each toilet to
appropriate inlet fitting on ManaGerM.

2. If only one toilet is being used, glue plug
into vacant inlet port.

3. Connect discharge of ManaGerM to
overboard through hull fitting..

Note: Discharge line must be a downward run
to the through hull; no portion of the piping/
hose must be higher than discharge port of
secondary tank.

Installing Pumpout Fittings
“Y” Valve
1. Pumpout fittings should be connected to
appropriate pumpout ports on top of each
tank, then run to a “Y” valve.
2. From the “Y” valve, hose is run to deck
pump out fitting.
3. Install “Y” valve so that port going to deck
pumpout is the “common” port and the two
other ports run to the vent fittings on the
respective tanks. this allows each tank to
be selected individually for pumpout.
OPTIONAL: Each tank may be directly
plumbed to independant deck pump-out
fittings.
PORT
Installing Vents

Venting the system is important for proper
operation. Vent fittings are located on top of
tanks. PORT
STARBOARD
IMPORTANT AFT
• Vents must be minimum of 1 1/2” pipe
or hose.
• Vent lines exiting unit should be vertical
as much as possible but not greater than
20” (50 cm.) above tank(s).
10 FORWARD
