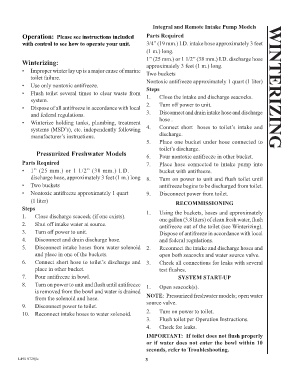

Page 3 - Raritan Marine Elegance Owners Manual L490v0720v

Integral and Remote Intake Pump Models
Operation: Please see instructions included Parts Required
with control to see how to operate your unit. 3/4” (19 mm.) I.D. intake hose approximately 3 feet
(1 m.) long.

Winterizing: 1” (25 mm.) or 1 1/2” (38 mm.) I.D. discharge hose
approximately 3 feet (1 m.) long.
• Improper winter lay up is a major cause of marine Two buckets
toilet failure. Nontoxic antifreeze approximately 1 quart (1 liter)
• Use only nontoxic antifreeze. Steps
• Flush toilet several times to clear waste from 1. Close the intake and discharge seacocks. WINTERIZING
system.
• Dispose of all antifreeze in accordance with local 2. Turn off power to unit.
and federal regulations. 3. Disconnect and drain intake hose and discharge
• Winterize holding tanks, plumbing, treatment hose .
systems (MSD’s), etc. independently following 4. Connect short hoses to toilet’s intake and
manufacturer’s instructions. discharge.
5. Place one bucket under hose connected to
toilet’s discharge.
Pressurized Freshwater Models 6. Pour nontoxic antifreeze in other bucket.
Parts Required 7. Place hose connected to intake pump into
• 1” (25 mm.) or 1 1/2” (38 mm.) I.D. bucket with antifreeze.
discharge hose, approximately 3 feet (1 m.) long 8. Turn on power to unit and flush toilet until
• Two buckets antifreeze begins to be discharged from toilet.
• Nontoxic antifreeze approximately 1 quart 9. Disconnect power from toilet.
(1 liter) RECOMMISSIONING
Steps
1. Close discharge seacock (if one exists). 1. Using the buckets, hoses and approximately
one gallon (3.8 liters) of clean fresh water, flush
2. Shut off intake water at source. antifreeze out of the toilet (see Winterizing).
3. Turn off power to unit. Dispose of antifreeze in accordance with local
4. Disconnect and drain discharge hose. and federal regulations.
5. Disconnect intake hoses from water solenoid 2. Reconnect the intake and discharge hoses and
and place in one of the buckets. open both seacocks and water source valve.
6. Connect short hose to toilet’s discharge and 3. Check all connections for leaks with several
place in other bucket. test flushes.
7. Pour antifreeze in bowl. SYSTEM START-UP
8. Turn on power to unit and flush until antifreeze 1. Open seacock(s).
is removed from the bowl and water is drained
from the solenoid and hose. NOTE: Pressurized freshwater models; open water
9. Disconnect power to toilet. source valve.
10. Reconnect intake hoses to water solenoid. 2. Turn on power to toilet.
3. Flush toilet per Operation Instructions.
4. Check for leaks.
IMPORTANT: If toilet does not flush properly
or if water does not enter the bowl within 10
seconds, refer to Troubleshooting.

L490 0720jlc 3
