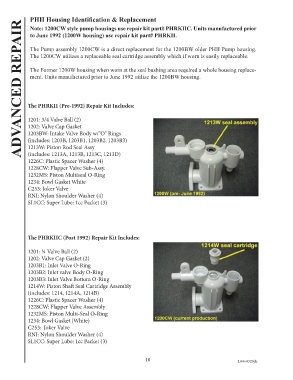

PHII Housing Identification & Replacement
ANCED REPAIR
Note: 1200CW style pump housings use repair kit part# PHRKIIC. Units manufactured prior
to June 1992 (1200W housing) use repair kit part# PHRKII.

The Pump assembly 1200CW is a direct replacement for the 1200BW older PHII Pump housing.
The 1200CW utilizes a replaceable seal cartridge assembly which if worn is easily replaceable.

The Former 1200W housing when worn at the seal bushing area required a whole housing replace-
ment. Units manufactured prior to June 1992 utilize the 1200BW housing.

The PHRKII (Pre-1992) Repair Kit Includes:

1201: 3/4 Valve Ball (2)
1202: Valve Cap Gasket
ADV (includes: 1203B, 1203B1, 1203B2, 1203B3)
1203BW: Intake Valve Body w/"O" Rings

1213W: Piston Rod Seal Assy

(includes: 1213A, 1213B, 1213C, 1213D)
1226C: Plastic Spacer Washer (4)
1228CW: Flapper Valve Sub-Assy.
1232MS: Piston Multiseal O-Ring
1234: Bowl Gasket White
C253: Joker Valve
RNI: Nylon Shoulder Washer (4)
SL1CC: Super Lube: 1cc Packet (3)

The PHRKIIC (Post 1992) Repair Kit Includes:

1201: ¾ Valve Ball (2)
1202: Valve Cap Gasket (2)
1203B1 : Inlet Valve O-Ring
1203B2: Inlet valve Body O-Ring
1203B3: Inlet Valve Bottom O-Ring
1214W: Piston Shaft Seal Cartridge Assembly
(includes: 1214, 1214A, 1214B)
1226C: Plastic Spacer Washer (4)
1228CW: Flapper Valve Assembly
1232MS: Piston Multi-Seal O-Ring
1234: Bowl Gasket (White)
C253: Joker Valve
RNI: Nylon Shoulder Washer (4)
SL1CC: Super Lube: 1cc Packet (3)
