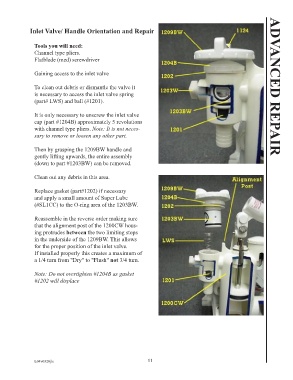

Inlet Valve/ Handle Orientation and Repair ADV

Tools you will need:
Channel type pliers.
Flatblade (med) screwdriver

Gaining access to the inlet valve

To clean out debris or dismantle the valve it
is necessary to access the inlet valve spring
(part# LWS) and ball (#1201). ANCED REPAIR

It is only necessary to unscrew the inlet valve
cap (part #1204B) approximately 5 revolutions
with channel type pliers. Note: It is not neces-
sary to remove or loosen any other part.

Then by grasping the 1209BW handle and
gently lifting upwards, the entire assembly
(down to part #1203BW) can be removed.

Clean out any debris in this area.

Replace gasket (part#1202) if necessary
and apply a small amount of Super Lube
(#SL1CC) to the O-ring area of the 1203BW.

Reassemble in the reverse order making sure
that the alignment post of the 1200CW hous-
ing protrudes between the two limiting stops
in the underside of the 1209BW. This allows
for the proper position of the inlet valve.
If installed properly this creates a maximum of
a 1/4 turn from "Dry" to "Flush" not 3/4 turn.

Note: Do not overtighten #1204B as gasket
#1202 will displace
