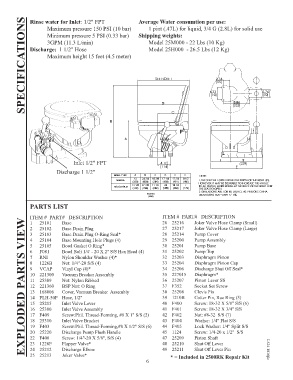

Page 6 - Raritan FreshHead Owners Manual L524-v1016

SPECIFICATIONS
Rinse water for Inlet: 1/2" FPT Average Water consumtion per use:
Maximum pressure 150 PSI (10 bar) 1 pint (.47L) for liquid, 3/4 G (2.8L) for solid use
Minimum pressure 5 PSI (0.33 bar) Shipping weights:
3GPM (11.3 L/min) Model 25M000 - 22 Lbs (10 Kg)
Discharge: 1 1/2" Hose Model 25H000 - 26.5 Lbs (12 Kg)
Maximum height 15 feet (4.5 meter)

Inlet 1/2" FPT

Discharge 1 1/2"

PARTS LIST

ITEM # PART# DESCRIPTION ITEM # PART# DESCRIPTION
EXPLODED PARTS VIEW
1 25101 Base 26 25216 Joker Valve Hose Clamp (Small)
2 25102 Base Drain Plug 27 25217 Joker Valve Hose Clamp (Large)
3 25103 Base Drain Plug O-Ring Seal* 28 25214 Pump Cover
4 25104 Base Mounting Hole Plugs (4) 29 25200 Pump Assembly
5 25105 Bowl Gasket O Ring* 30 25201 Pump Base
6 F081 Bowl Bolt 1/4' - 20 X 2" S/S Hex Head (4) 31 25202 Pump Top
7 RNI Nylon Shoulder Washer (4)* 32 25203 Diaphragm Piston
8 1226B Nut: 1/4"-20 S/S (4) 33 25204 Diaphragm Piston Cap
9 VCAP Vinyl Cap (4)* 34 25206 Discharge Shut Off Seal*
10 221300 Vacuum Breaker Assembly 35 227015 Diaphragm*
11 25309 Nut: Nylon Ribbed 36 25207 Piston Lever SS
12 221360 BSP Nut: O Ring 37 F352 Socket Set Screw
13 168006 Cover, Vacuum Breaker Assembly 38 25208 Clevis Pin
14 PLH-50P Hose, 1/2" 39 1210B Cotter Pin, Rue Ring (3)
15 25215 Inlet Valve Lever 40 F400 Screw: #8-32 X 5/8" S/S (6)
16 25300 Inlet Valve Assembly 41 F401 Screw: #8-32 X 3/4" S/S
17 F409 Screw:Phil. Thread-Forming, #8 X 1" S/S (2) 42 F402 Nut: #8-32 S/S (7)
18 25310 Inlet Valve Bracket 43 F404 Washer: 1/4" Flat S/S
19 F403 Screw:Phil. Thread-Forming,#8 X 1/2" S/S (6) 44 F405 Lock Washer: 1/4" Split S/S
20 25220 Discharge Pump Flush Handle 45 1124 Screw: 1/4-20 x 1/2" S/S
22 F408 Screw: 1/4"-20 X 5/8", S/S (4) 47 25209 Piston Shaft
23 1228F Flapper Valve* 48 25210 Shut Off Lever
24 25212 Discharge Elbow 49 25211 Shut Off Lever Pin L524 1016jlc
25 25213 Joker Valve* * = Included in 2500RK Repair Kit
