Page 13 - Raritan Hold-N-Treat for Purasan EX L519v0919

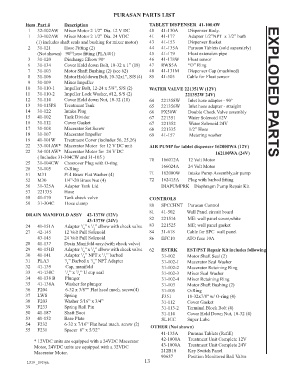

PURASAN PARTS LIST

Item Part # Description TABLET DISPENSER 41-100AW
1 32-102AW Mixer Motor 2 1/2” Dia. 12 V DC 40 41-130A Dispenser Body.
1 33-102AW Mixer Motor 2 1/2” Dia. 24 VDC 41 41-177 Adapter 1/2”NPT x 1/2” barb
(1) includes shaft seals and bushing for mixer motor) 43 41-153 Dispenser Basket
2 31-121 Hose Fitting (2) 44 41-135A Purasan Tablets (sold saparately)
(Not shown) 90 hose fitting (PLA401) 45 41-179 Float extension pipe
)0
3 31-120 Discharge Elbow 90 o 46 41-178W Float sensor
6 31-134 Cover Hold down Bolt, 10-32 x 1” (18) 47 RWS5A “O” Ring
7 31-103 Motor Shaft Bushing (2) (see 62) 48 41-131M Dispenser Cap (machined)
8 31-106 Motor Hold down Bolt, 10-32x1”, S/S (4) 85 41-505 Cable for Float sensor
9 31-109 Mixer Impeller
10 31-110-1 Impeller Bolt, 12-24 x 5/8”, S/S (2) WATER VALVE 221351W (12V)
11 31-110-2 Impeller Lock Washer, #12, S/S (2) 221352W 24V) EXPLODED PARTS
12 31-114 Cover Hold down Nut, 10-32 (18) 64 221358W Inlet hose adapter - 90°
13 31-115PS Treatment Tank 65 221356W Inlet hose adapter - straight
14 31-122 Intake Plug 66 PX50W Double Check Valve assembly
15 41-102 Tank Divider 67 221351 Water Solenoid 12V
16 31-112 Cover Gasket 67 221352 Water Solenoid 24V
17 31-108 Macerator Set Screw 68 221335 1/2” Hose
18 31-107 Macerator Impeller 69 41-157 Metering washer
19 41-101W Treatment Cover (includes 56, 25,26)
22 33-101AW* Macerator Motor for 12 V DC unit AIR PUMP for tablet dispenser 162000WA (12V)
22 34-101AW* Macerator Motor for 24 V DC 162100WA (24V)
( Includes 31-304CW and 31-105 ) 70 166012A 12 Volt Motor
25 31-104CW Crossover Plug with O-ring
26 31-105 O-Ring 166024A 24 Volt Motor
51 M31 #14 Brass Flat Washer (4) 71 162000W Intake Pump Assembly,air pump
52 M30 1/4”-20 Brass Nut (4) 72 162415A Plug with barbed fitting
56 31-325A Adapter Tank Lid DIAPUMPRK Diaphragm Pump Repair Kit
57 221335 Hose
58 41-170 Tank check valve CONTROLS
59 31-304C Hose clamp 80 SPCCHNT Purasan Control
81 41-502 Wall Panel circuit board
DRAIN MANIFOLD ASSY 42-137W (12V)
43-137W (24V) 82 221514 ME: wall panel cover,white
24 41-151A Adapter / ” x / ” elbow with check valve 83 221525 ME; wall panel gasket
1
1
2
4
27 42-145 12 Volt Pull Solenoid 84 31-618 Cable for SPC wall panel
43-145 24 Volt Pull Solenoid 86 EFC10 ATO fuse 10A
28 41-137 Drain Manifold assy.(with check valve)
29 41-151B Adapter / ” x / ” elbow with check valve 62 ESTRK EST/PST Repair Kit includes following
1
1
4
4
30 41-141 Adapter / ” NPT x / ” barbed 31-102 Motor Shaft Seal (2)
1
1
2
4
31 PLA3 1 / ” Barbed x / ” NPT Adapter 31-102-1 Macerator Seal Washer
1
4
4
32 41-139 Cap, manifold 31-102-2 Macerator Retaining Ring
33 41-138C / ” x / ” U cup seal 31-102-3 Mixer Seal Washer
1
3
4
4
34 41-138 B Plunger 31-102-4 Mixer Retaining Ring
35 41-138A Washer for plunger 31-103 Motor Shaft Bushing (2)
36 F204 6-32 x 3/8”” Flat head mach. screw(4) 31-105 O-Ring
37 LWS Spring F351 10-32x7/8'' w/ O-ring (4)
38 F203 Washer 5/16” x 3/4” 31-112 Cover Gasket
39 F233 Spring Roll Pin 31-113-2 Terminal Block Bolt (4)
50 41-187 Shaft Boot 31-114 Cover Hold Down Nut, 10-32 (4)
53 41-152 Base Plate SL1CC Super Lube
54 F232 6-32 x 7/16” Flat head mach. screw (2) OTHER (Not shown)
55 F231 Spacer 6” x 5/32”
41-135A Purasan Tablets (Refill)
* 12VDC units are equipped with a 24VDC Macerator 42-1000A Treatment Unit Complete 12V
Motor, 24VDC units are equipped with a 32VDC 43-1000A Treatment Unit Complete 24V
Macerator Motor. 212B10 Key Switch Panel
90657
Position Monitored Ball Valve
L519 _0919jlc 13
