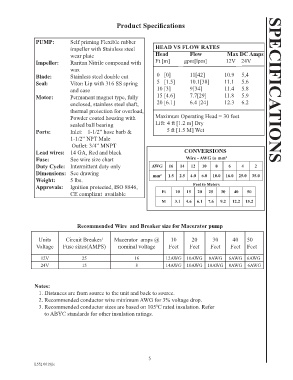

Product Specifications

PUMP: Self priming Flexible rubber
impeller with Stainless steel HEAD VS FLOW RATES
wear plate Head Flow Max DC Amps
Impeller: Raritan Nitrile compound with Ft [m] gpm[lpm] 12V 24V
wax
Blade: Stainless steel double cut 0 [0] 11[42] 10.9 5,4
Seal: Viton Lip with 316 SS spring 5 [1.5] 10.1[38] 11.1 5.6
and case 10 [3] 9[34] 11.4 5.8 SPECIFICATIONS
Motor: Permanent magnet type, fully 15 [4.6] 7.7[29] 11.8 5.9
enclosed, stainless steel shaft, 20 [6.1] 6.4 [24] 12.3 6.2
thermal protection for overload,
Powder coated housing with Maximum Operating Head = 30 feet
sealed ball bearing Lift: 4 ft [1.2 m] Dry
Ports: Inlet: 1-1/2” hose barb & 5 ft [1.5 M] Wet
1-1/2” NPT Male
Outlet: 3/4” MNPT
Lead wires: 14 GA, Red and black CONVERSIONS
Fuse: See wire size chart Wire - AWG to mm 2
Duty Cycle: Intermittent duty only AWG 16 14 12 10 8 6 4 2
Dimensions: See drawing mm 2 1.5 2.5 4.0 6.0 10.0 16.0 25.0 35.0
Weight: 5 lbs.
Approvals: Ignition protected, ISO 8846, Feet to Meters
CE compliant available Ft 10 15 20 25 30 40 50
M 3.1 4.6 6.1 7.6 9.2 12.2 15.2

Recommended Wire and Breaker size for Macerator pump

Units Circuit Breaker/ Macerator amps @ 10 20 30 40 50
Voltage Fuse sizes(AMPS) nominal voltage Feet Feet Feet Feet Feet

12V 25 16 12AWG 10AWG 8AWG 6AWG 6AWG
24V 15 8 14AWG 10AWG 10AWG 8AWG 6AWG

Notes:
1. Distances are from source to the unit and back to source.
2. Recommended conductor wire minimum AWG for 3% voltage drop.
3. Recommended conductor sizes are based on 105 C rated insulation. Refer
0
to ABYC standards for other insulation ratings.

5
L552 0619jlc 5
