Page 6 - Raritan Macerator Pump Owners Manual L552-0619

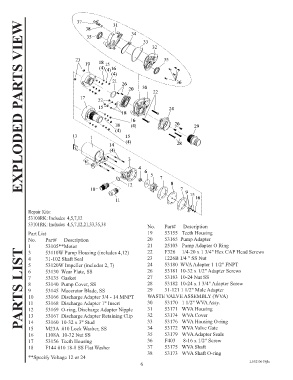

EXPLODED PARTS VIEW

Repair Kits:
53100RK: Includes 4,5,7,12
53101RK: Includes 4,5,7,12,21,33,35,38 No. Part# Description
Part List 19 53155 Teeth Housing
No. Part# Description 20 53165 Pump Adapter
1 53105**Motor 21 25103 Pump Adapter O Ring
PARTS LIST
3 53110W Pump Housing (includes 4,12) 22 F326 1/4-20 x 1 3/4" Hex CAP Head Screws
4 31-102 Shaft Seal 23 1226B 1/4 " SS Nut
5 53120W Impeller (includes 2, 7) 24 53180 WVA Adapter 1 1/2" FNPT
6 53130 Wear Plate, SS 26 53181 10-32 x 1/2" Adapter Screws
7 53135 Gasket 27 53183 10-24 Nut SS
8 53140 Pump Cover, SS 28 53182 10-24 x 1 3/4" Adapter Screw
9 53145 Macerator Blade, SS 29 31-121 1 1/2" Male Adapter
10 53166 Discharge Adapter 3/4 - 14 MNPT WASTE VALVE ASSEMBLY (WVA)
11 53168 Discharge Adapter 1" Insert 30 53170 1 1/2" WVA Assy.
12 53169 O-ring, Discharge Adapter Nipple 31 53171 WVA Housing
13 53167 Discharge Adapter Retaining Clip 32 53174 WVA Cover
14 53160 10-32 x 3" Stud 33 53176 WVA Housing O-ring
15 M23A #10 Lock Washer, SS 34 53172 WVA Valve Gate
16 1108A 10-32 Nut SS 35 53179 WVA Adapter Seals
17 53156 Teeth Housing 36 F403 8-16 x 1/2" Screw
18 F144 #10 18-8 SS Flat Washer 37 53175 WVA Shaft
38 53173 WVA Shaft O-ring
**Specify Voltage 12 or 24
6 6 L552 0619jlc
