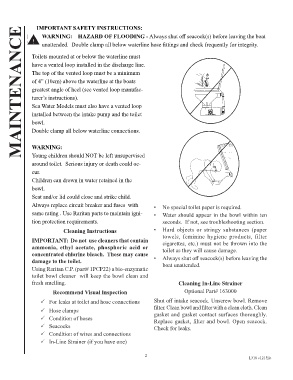

Page 2 - Raritan SeaEra Owners Manual L318v1215

IMPORTANT SAFETY INSTRUCTIONS:
MAINTENANCE
WARNING: HAZARD OF FLOODING - Always shut off seacock(s) before leaving the boat
unattended. Double clamp all below waterline hose fittings and check frequently for integrity.

Toilets mounted at or below the waterline must
have a vented loop installed in the discharge line.
The top of the vented loop must be a minimum
of 4” (10cm) above the waterline at the boats
greatest angle of heel (see vented loop manufac-
turer’s instructions).
Sea Water Models must also have a vented loop

installed between the intake pump and the toilet
bowl.
Double clamp all below waterline connections.

WARNING:

Young children should NOT be left unsupervised
around toilet. Serious injury or death could oc-
cur.
Children can drown in water retained in the
bowl.
Seat and/or lid could close and strike child.
Always replace circuit breaker and fuses with • No special toilet paper is required.
same rating . Use Raritan parts to maintain igni- • Water should appear in the bowl within ten

tion protection requirements. seconds. If not, see troubleshooting section.
Cleaning Instructions • Hard objects or stringy substances (paper
towels, feminine hygiene products, filter
IMPORTANT: Do not use cleaners that contain cigarettes, etc.) must not be thrown into the
ammonia, ethyl acetate, phosphoric acid or toilet as they will cause damage.
concentrated chlorine bleach. These may cause
damage to the toilet. • Always shut off seacock(s) before leaving the
boat unattended.
Using Raritan C.P. (part# 1PCP22) a bio-enzymatic
toilet bowl cleaner will keep the bowl clean and
fresh smelling. Cleaning In-Line Strainer
Recommend Visual Inspection Optional Part# 163000

P For leaks at toilet and hose connections Shut off intake seacock. Unscrew bowl. Remove
P Hose clamps filter. Clean bowl and filter with a clean cloth. Clean
gasket and gasket contact surfaces thoroughly.
P Condition of hoses Replace gasket, filter and bowl. Open seacock.
P Seacocks Check for leaks.
P Condition of wires and connections
P In-Line Strainer (if you have one)

2
L318 v1215jlc
