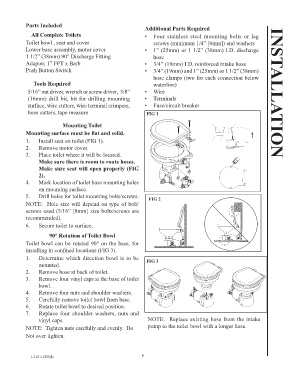

Parts Included Additional Parts Required
All Complete Toilets • Four stainless steel mounting bolts or lag
Toilet bowl , seat and cover screws (minimum 1/4” [6mm]) and washers
Lower base assembly, motor cover • 1” (25mm) or 1 1/2” (38mm) I.D. discharge
1 1/2” (38mm) 90° Discharge Fitting hose
Adapter, 1” FPT x Barb • 3/4” (19mm) I.D. reinforced intake hose
Push Button Switch • 3/4” (19mm) and 1” (25mm) or 1 1/2” (38mm)
hose clamps (two for each connection below
Tools Required waterline)
5/16” nut driver, wrench or screw driver, 5/8” • Wire
(16mm) drill bit, bit for drilling mounting • Terminals INSTALLATION
surface, wire cutters, wire terminal crimpers, • Fuse/circuit breaker
hose cutters, tape measure FIG 1
Mounting Toilet
Mounting surface must be flat and solid.
1. Install seat on toilet (FIG 1).
2. Remove motor cover.
3. Place toilet where it will be located.
Make sure there is room to route hoses.
Make sure seat will open properly (FIG
2).
4. Mark location of toilet base mounting holes
on mounting surface.
5. Drill holes for toilet mounting bolts/screws. FIG 2
NOTE: Hole size will depend on type of bolt/
screws used (5/16” [8mm] size bolts/screws are
recommended).
6. Secure toilet to surface.
90° Rotation of Toilet Bowl
Toilet bowl can be rotated 90° on the base, for
installing in confined locations (FIG 3).
1. Determine which direction bowl is to be FIG 3
mounted.
2. Remove hose at back of toilet.
3. Remove four vinyl caps at the base of toilet
bowl.
4. Remove four nuts and shoulder washers.
5. Carefully remove toilet bowl from base.
6. Rotate toilet bowl to desired position.
7. Replace four shoulder washers, nuts and
vinyl caps. NOTE: Replace existing hose from the intake
NOTE: Tighten nuts carefully and evenly. Do pump to the toilet bowl with a longer hose.
Not over tighten.
