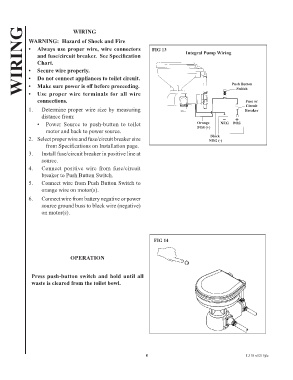

Page 8 - Raritan SeaEra Owners Manual L318v1215

WIRING WARNING: Hazard of Shock and Fire FIG 13 Integral Pump Wiring
WIRING

• Always use proper wire, wire connectors
and fuse/circuit breaker. See Specification
Chart.
• Secure wire properly.
• Do not connect appliances to toilet circuit.
• Make sure power is off before proceeding.
Switch
• Use proper wire terminals for all wire
connections. Push Button
Fuse or
Circuit
1. Determine proper wire size by measuring Breaker
distance from:
• Power Source to push-button to toilet Orange NEG POS
motor and back to power source. POS (+)
Black
2. Select proper wire and fuse/circuit breaker size NEG (-)
from Specifications on Installation page.
3. Install fuse/circuit breaker in positive line at
source.
4. Connect positive wire from fuse/circuit
breaker to Push Button Switch.
5. Connect wire from Push Button Switch to
orange wire on motor(s).

6. Connect wire from battery negative or power
source ground buss to black wire (negative)
on motor(s).

FIG 14

OPERATION

Press push-button switch and hold until all
waste is cleared from the toilet bowl.

8 L318 v1215jlc
