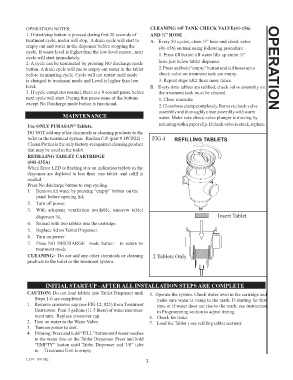

Page 3 - Raritan Hold-N-Treat for Purasan EX L519v0919
P. 3
OPERATION NOTES: CLEANING OF TANK CHECK VALVE(41-156)
1. If start/stop button is pressed during first 20 seconds of AND ½” HOSE
treatment cycle, motor will stop, A drain cycle will start to A. Every 50 cycles, clean ½” hose and check valve
empty out and water in the dispenser before stopping the (41-156) on tank using following procedure:
cycle. If waste level is higher than the low level sensor , next 1. Press fill button till water fills up entire ½”
cycle will start immediately.
2. A cycle can be terminated by pressing NO discharge mode hose just below tablet dispenser
button. A drain cycle will run to empty out water in the tablet 2. Press and hold “empty” button until all hoses up to OPERATION
before terminating cycle. Cycle will not restart until mode check valve on treatment tank are empty.
is changed to treatment mode and Level is higher than low 3. Repeat steps 1&2 three more times.
level. B. Every time tablets are refilled, check valve assembly on
3. If cycle completes normal, there is a 8 second pause before the treatment tank must be cleaned.
next cycle will start. During this pause none of the buttons 1. Close seacocks
except No Discharge mode button is functional. 2. Close hose clamp completely. Remove check valve
assembly and thoroughly clean assembly with warm
MAINTENANCE water. Make sure check valve plunger is moving by
Use ONLY PURASAN Tablets. actuating with a paper clip. If check valve is stuck, replace.
®
DO NOT add any other chemicals or cleaning products to the
toilet or the treatment system. Raritan C.P. (part # 1PCP22) - FIG 4 REFILLING TABLETS
Cleans Potties is the only factory-recognized cleaning product
that may be used in the toilet.
REFILLING TABLET CARTRIDGE
(#41-135A)
When Error LED is flashing it is an indication tablets in the
dispenser are depleted to less than one tablet and refill is
needed.
Press No discharge button to stop cycling.
1 Remove all water by pressing “empty” button on the
panel before opening lid.
2. Turn off power.
3. With adequate ventilation available, unscrew tablet
dispenser lid. Insert Tablet
4. Reload with two tablets into the cartridge.
5. Replace lid on Tablet Dispenser.
6. Turn on power
7. Press NO DISCHARGE mode button to return to
treatment mode
CLEANING: Do not add any other chemicals or cleaning 2 Tablets Only
products to the toilet or the treatment system.
INITIAL START-UP - AFTER ALL INSTALLATION STEPS ARE COMPLETE
CAUTION: Do not load tablets into Tablet Dispenser until 5. Operate the system. Check water level in the cartridge and
Steps 1-6 are completed. make sure water is rising to the mark. If starting for first
1. Remove crossover cap (see FIG 12; #25) from Treatment time or if water does not rise to the mark, see instruction
Unit tower. Pour 3 gallons (11.5 liters) of water into treat- in Programming section to adjust timing.
ment unit. Replace crossover cap. 6. Check for leaks.
2. Turn on water to the Water Valve. 7. Load the Tablet ( see refilling tablet section).
3. Turn on power to unit.
4. Priming: Press and hold “FILL” button until water reaches
to the water line on the Tablet Dispenser. Press and hold
“EMPTY” button until Tablet Dispenser and 3/8” tube
to Treatment Unit is empty.
L519 _0919jlc 3
