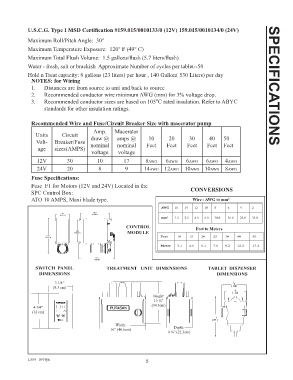

Page 5 - Raritan Hold-N-Treat for Purasan EX L519v0919

U.S.C.G. Type I MSD Certification #159.015/0010133/0 (12V) 159.015/0010134/0 (24V)

Maximum Roll/Pitch Angle: 30°
Maximum Temperature Exposure: 120° F (49° C)
Maximum Total Flush Volume: 1.5 gallons/flush (5.7 liters/flush)
Water - fresh, salt or brackish Approximate Number of cycles per tablet--50
Hold n Treat capacity: 6 gallons (23 liters) per hour , 140 Gallon( 530 Liters) per day
NOTES: for Wiring
1. Distances are from source to unit and back to source SPECIFICATIONS
2. Recommended conductor wire minimum AWG (mm) for 3% voltage drop.
o
3. Recommended conductor sizes are based on 105 C rated insulation. Refer to ABYC
standards for other insulation ratings.

Recommended Wire and Fuse/Circuit Breaker Size with macerator pump
Amp. Macerator
Units Circuit draw @ amps @ 10 20 30 40 50
Volt- Breaker/Fuse nominal nominal Feet Feet Feet Feet Feet
age sizes(AMPS)
voltage voltage
12V 30 10 17 8AWG 6AWG 6AWG 6AWG 4AWG
24V 20 8 9 14AWG 12AWG 10AWG 10AWG 8AWG
Fuse Specifications:
Fuse F1 for Motors (12V and 24V) Located in the CONVERSIONS
SPC Control Box:
ATO 10 AMPS, Maxi blade type. Wire - AWG to mm 2

AWG 16 14 12 10 8 6 4 2
mm 2 1.5 2.5 4.0 6.0 10.0 16.0 25.0 35.0
CONTROL Feet to Meters
MODULE
Feet 10 15 20 25 30 40 50

Meter 3.1 4.6 6.1 7.6 9.2 12.2 15.2

SWITCH PANEL TREATMENT UNIT DIMENSIONS TABLET DISPENSER
DIMENSIONS DIMENSIONS

3 1/4” 7 1 4
(8.3 cm) [184]
6
[152]
Height:
13 ½”
(34.3cm)
4 3/4”
(12 cm)
1
11
2
[291]
Width:
16” (40.6cm) Depth:
8 ¾” (22.3cm)

L519 _0919jlc 5
